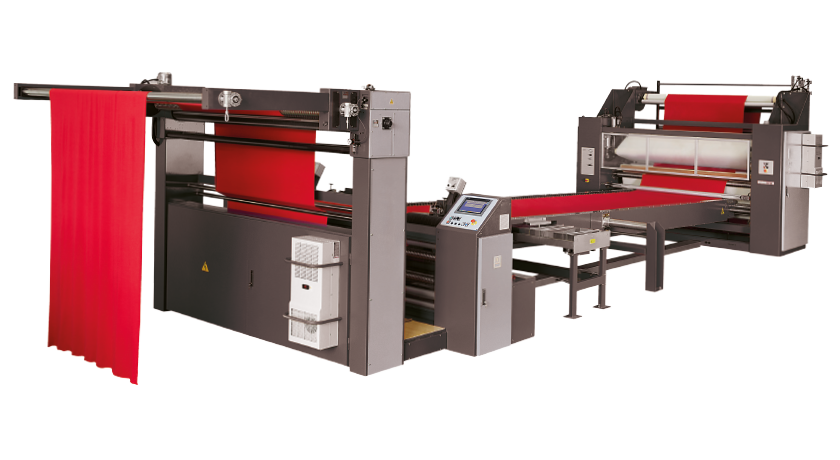

Steaming and compacting machine for open width knitted fabrics

• Perfect distortion-free width control by means of an entry pin frame equipped with a weft straightnening unit and independent chain drive
• Condensate-free steaming box with adjustable steaming action according to the fabric width made in corrosion resistant materials
• Tensionless fabric feeding into the compacting unit thanks to the extremely reduced distance between the de-pinning point and the first compacting passage
• Exclusive design felt belts for better compacting at higher speed

Working width: 140 – 260 cm (others on request)
Total width: Working width+ 1.7 m
Machine speed: 0-50 m/min step less adjustable (30m/min average)
Working speed: 25 m/min with edge gluing and drying
Power supply: Approx 100 kw (average)
Dimension Length: 14 m
Options: Selvedges glueing and high efficiency drying unit, Selvedges trimming unit, Integrated J-Box, inspection table and batch winder

• No further stenter frame treatment required in case of 100% cotton knitted fabrics thanks to the pin frame length and the weft distortion controls
• Minimal residual shrinkage values combined with a soft and voluminous touch ensured by the special multilayer felt belt structure
• Drives synchronization by means of electronic loading cells for smooth fabrics handling during the process
• Touch screen panel with recipes storage made by Siemens
